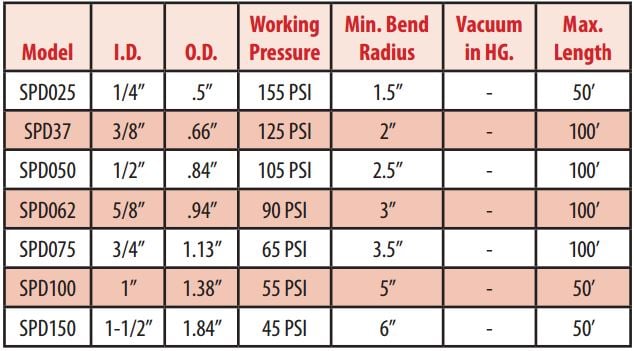

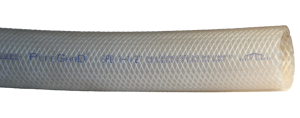

SPD Single-Ply Discharge



An ultra flexible single ply polyester braid reinforced silicone hose. Suitable for a variety of food, beverage, comestible, and instrumentation applications where not vacuum rating is required. Imparts no taste or odor. Suitable for CIP and SIP cleaning. Sterilizable and autoclavable. Meets FDA, 3-A* and USP Class VI Standards.

APPROVALS: FDA, 3-A, USP Class VI silicone
TUBE: Platinum Cured
REINFORCEMENT: Single ply polyester braid
TEMP. RANGE: -80° to 350°F
COVER:White Translucent

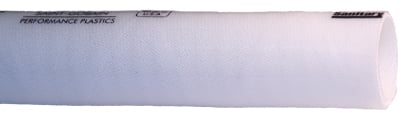

FPD Four-Ply Discharge


A four ply polyester braid reinforced silicone hose with good pressure rating and able to handle some vacuum in most sizes. Imparts no taste or odor. Suitable for CIP and SIP cleaning. Sterilizable and autoclavable. Meets FDA, 3-A* and USP Class VI Standards.

APPROVALS:
FDA, 3-A, USP Class VI silicone
TUBE: Platinum Cured
REINFORCEMENT: Four ply polyester braid

TEMP. RANGE: -80° to 350°F
COVER: White Translucent

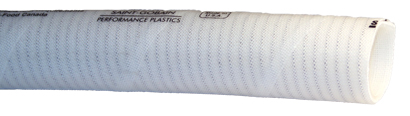

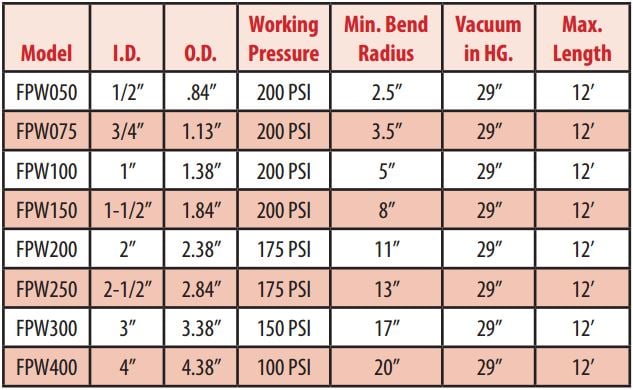

FPW Wire Reinforced


A multi-ply wire reinforced silicone hose with excellent bend radius, higher pressure and full vacuum ratings. An excellent choice for applications requiring a silicone hose that will handle both pressure and vacuum. Imparts not taste or odor. Suitable for CIP and SIP cleaning. Sterilizable and autoclavable. Meets FDA, 3-A* and USP Class VI Standards.

APPROVALS:
FDA, 3-A, USP Class VI silicone
TUBE:Platinum Cured
REINFORCEMENT: Four ply polyester braid with stainless steel wire helix wire
TEMP. RANGE: -80° to 350°F
COVER:White Translucent



View the full ‘Sanitary Hose Assembly Products’ PDF here!


Build Your Custom Assembly in Just 7 Easy Steps

1) Select code for hose style
Rubber Hoses
Silicone Hoses
PVC Hoses
PVC Tubing
2) Specify hose ID
3) Coupler Style (RE = reusable)
4 & 5) Specify size and connection of each end fitting
6) Hose sleeve material
– Stainless
– Polyester
7) Specify overall assembly length in inches
8) Call Customer Service at 800-826-8302
