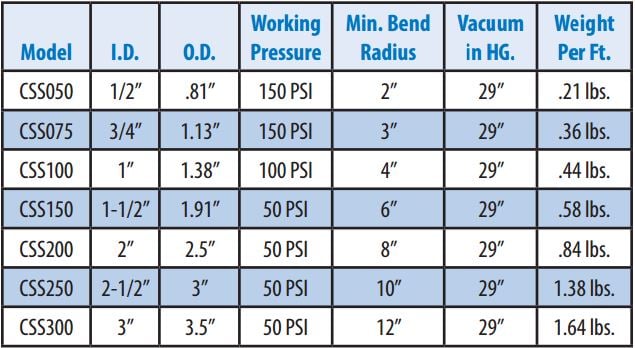

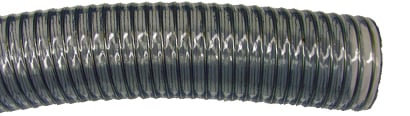

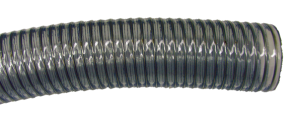

CSS Wire Reinforced Tubing


Heavy-duty clear PVC hose features a steel wire reinforcement which helps prevent kinking and collapsing. This hose is suitable for milk handling and food processing applications. Compliant with 3-A, USDA, USP Class VI, and FDA standards.

TUBE: FDA, USDA, 3-A, USP Class VI, PVC
REINFORCEMENT: Clear extrusion with steel wire helix
TEMP. RANGE: 25 to 150°F

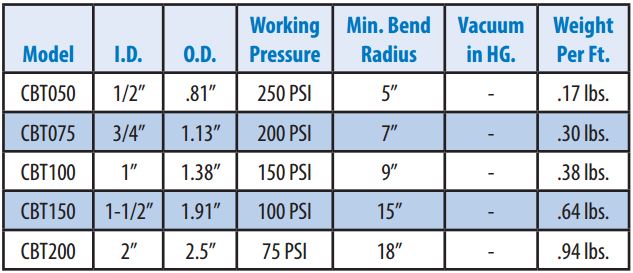

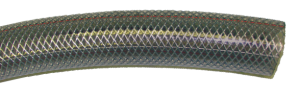

CBT Braid Reinforced Tubing


Flexible, crystal clear tubing reinforced with multiple polyester braids is suitable for a wide variety of food and beverage applications. Compliant with 3-A, USDA, USP Class VI, and FDA standards.

TUBE: FDA, 3-A, USP Class VI, PVC
REINFORCEMENT: Extrusion with polyester textile inner braid
TEMP. RANGE: 25 to 150°F

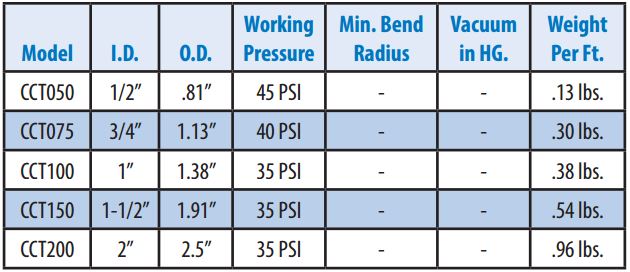

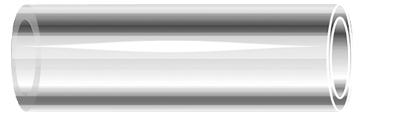

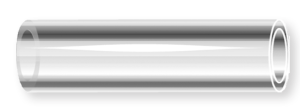

CCT Clear Tubing


Clear PVC food and beverage tubing. Works well for air lines and weak chemical and acid transfer. Applications for smaller sizes include bottling plants, beverage dispensing and laboratory tubing. Compliant with 3-A, USDA, USP Class VI, and FDA standards.

TUBE: FDA, 3-A, USP Class VI, PVC
REINFORCEMENT: Clear extrusion – no reinforcement
TEMP. RANGE: 25 to 150°F



View the full ‘Sanitary Hose Assembly Products’ PDF here!


Build Your Custom Assembly in Just 7 Easy Steps

1) Select code for specific hose
Rubber Hoses
PVC Hoses
Silicone Hoses
Fluoropolymer Hoses
2) Specify hose ID
3) Coupler Style (SL = radial crimp)
4 & 5) Specify size and connection of each end fitting
6) Hose sleeve material (S = stainless steel)
7) Specify overall assembly length in inches
8) Call Customer Service at 800-826-8302
