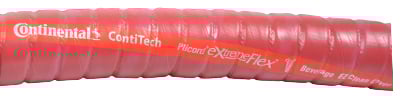

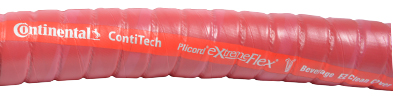

REB Red ExtremeFlex™ w/EZ Clean Cover Hose



When you are looking for flexibility, there is nothing better in a food grade hose than ExtremeFlex™. Ideal for applications requiring flexible and/or tight bend connections. Light weight and flexible with a corrugated cover for added abrasion resistance. These hoses are well suited for milk, beer, wine, distillery, beverage and other edible liquid transfer in a processing plant. The microbe-resistant chlorobutyl tube will not impart taste or smell. Only the RED ExtremeFlex features an EZ clean UHMWPE semi-smooth cover.

COLORS: Red
APPROVALS: FDA, USDA, 3-A
TUBE: White FDA Chlorobutyl
REINFORCEMENT: Spiral-plied fabrics with double steel wire helix
TEMP. RANGE: -30 to 220° F
COVER: Red Corrugated EZ Clean UHMWPE

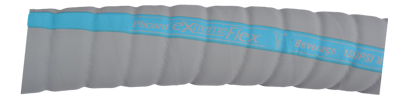

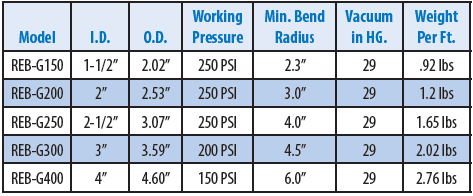

REB-G Gray ExtremeFlex™ Beverage Hose


ExtremeFlex™ is ideal for applications requiring flexibility and/or tight bend connections. Light weight and flexible with a gray corrugated cover for added abrasion resistance. These hoses are well suited for milk, beer, wine, distillery, beverage and other edible liquid transfer in a processing plant. The microbe-resistant chlorobutyl tube will not impart taste or smell.

COLORS: Gray
APPROVALS: USDA, FDA, 3-A
TUBE: White FDA Chlorobutyl
REINFORCEMENT: Spiral-plied fabrics with double steel wire helix
TEMP. RANGE: -30 to 220° F
COVER: Gray Corrugate Chemivic with blue stripe

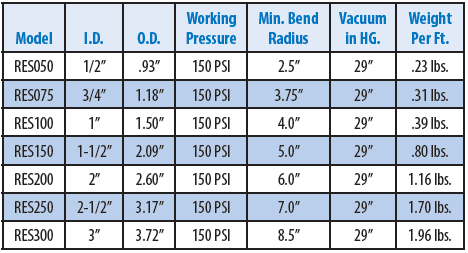

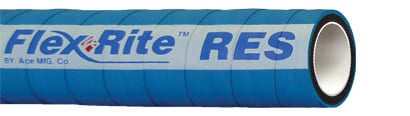

RES Premium Suction & Discharge Hose



Looking for a hose compatible with higher temperatures yet still providing flexibility and ease of handling? Look no further! Our RES Premium quality hose will handle temperatures up to 300°F and will not impart taste or odor to products being transferred. Consider this suction and discharge hose for use with milk, dairy, food and beverage as well as cosmetics, pharmaceutical and CIP applications. Meets 3-A standards, USDA requirements, and is FDA compliant.

COLORS: Blue
APPROVALS: FDA, USDA, 3-A
TUBE: White FDA, 3-A, EPDM
REINFORCEMENT: Two polyester spirals with dual helix wire
TEMP. RANGE: -40° to 300°F continuous
COVER: Light blue, EPDM Synthetic Rubber

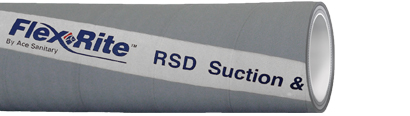

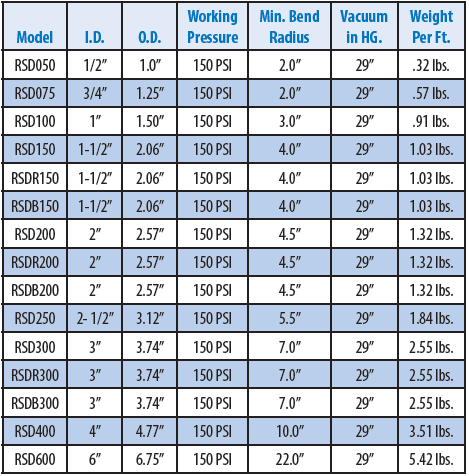

RSD Suction & Discharge



The superb quality and versatility of this hose makes it an extremely popular choice in food and dairy plants for both product transfer and CIP applications. The dual wire helix gives it extra flexibility making it easier to handle. The specially compounded tube will not impart taste or odor and is highly resistant to common CIP solutions. With three color options; gray, red and blue, this hose allows you to use the same quality hose while segregating applications—especially helpful when dealing with allergens and other color coding programs. Meets 3-A standards, USDA requirements, and is FDA compliant.

COLORS: RSD – Gray – all sizes, RSDR – Red – 1-1/2", 2", 3" only, RSDB – Blue – 1-1/2", 2", 3" only
APPROVALS: USDA, FDA, 3-A
TUBE: White, FDA, 3-A*, Chlorobutyl
REINFORCEMENT: Spiral-plied synthetic fabric with dual wire helix
TEMP. RANGE: -40 to 225° F
COVER: Gray, Red & Blue EPDM w/white stripe

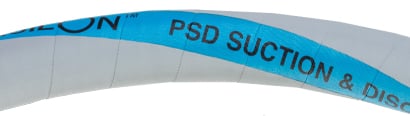

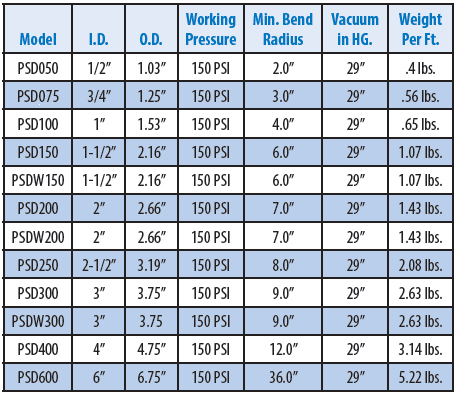

PSD Protector® Suction & Discharge Hose



This premium quality, remarkably versatile-use hose is, without a doubt, one of the finest sanitary food and dairy hose available today. The seamless tube is incredibly smooth, making it ideal for food plant use. It won't impart taste or odor to your product and is highly resistant to common CIP solutions. Abrasion resistant cover helps maintain a clean appearance. Unique fabric spirals and helix reinforcement gives our suction and discharge hose exceptional flexibility.

COLORS: Gray – all sizes, White – 1-1/2", 2", 3" only
APPROVALS: FDA, USDA, 3-A, CFIA
TUBE: White FDA butyl
REINFORCEMENT: 2 fabric spirals with helix wire
TEMP. RANGE: -40° to 225°F
COVER: Light gray or white EPDM

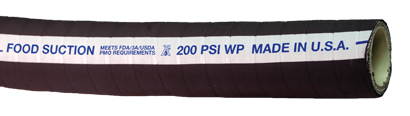

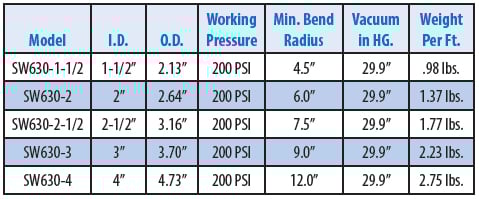

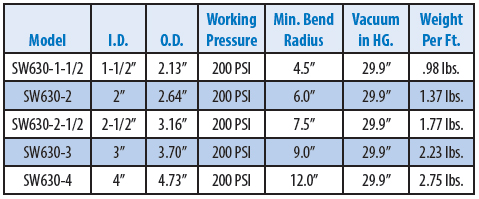

SW630 Food Suction Hose



An ultra-flexible food hose designed for milk, fruit juices, soft drinks, beer, wine, pharmaceuticals, cosmetics and other non-oily food products. Smooth cover provides extreme flexibility while minimizing bacteria build-up often found in corrugated hoses. Manufactured on stainless steel mandrels for an ultra-smooth bacteria free tube that will not impart taste or odor. All sizes available in crimp.

COLORS: Gray
APPROVALS: FDA, USDA, 3-A, PMO
TUBE: White Chlorobutyl
TEMP. RANGE: -40° to 225°F
COVER: Gray EPDM

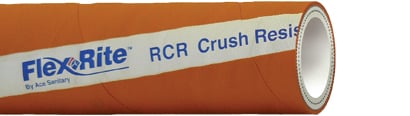

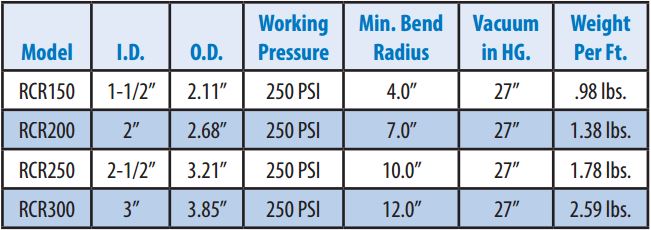

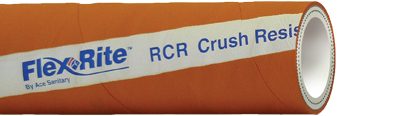

RCR Crush Resistant



Ideal for use in receiving bays and high traffic areas, this premium crush resistant hose's orange color gives it high visibility while the monofilament reinforcement is designed to spring back to its original shape after being twisted, kinked or run over. The bacteria resistant construction delivers unadulterated taste and odor free flow. With almost a full vacuum rating, this hose is suitable for many applications including wine, beer and other sanitary liquid food processes. Meets 3-A standards, USDA requirements, and is FDA compliant.

COLORS: Orange
APPROVALS: USDA, FDA, 3-A
TUBE: White, FDA, 3-A*, Chlorobutyl
REINFORCEMENT: Spiral-plied synthetic fabric with monofiliment helix
TEMP. RANGE: -30 to 225° F
COVER: Orange EPDM w/white stripe

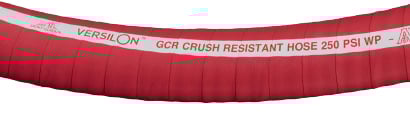

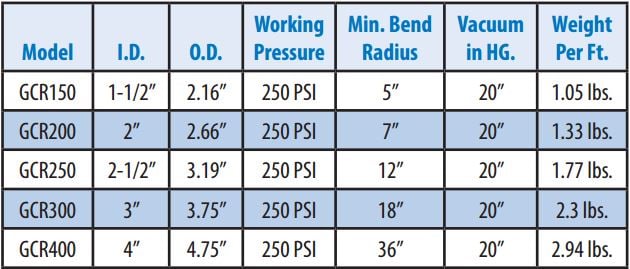

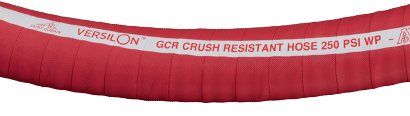

GCR Gladiator® Crust Resistant Hose



The secret to this crush resistant hose is a nylon helix that allows the hose to spring back to its original shape after being twisted, kinked or run over. Conveys a wide variety of dairy and food products – suited especially for receiving bay or raw product intake applications. Seamless tube will not impart taste or odor. Slightly heavier and less flexible than our suction and discharge hose.

Caution: Gladiator is rated at 20" Hg (about 75% vacuum) but will actually pull a full vacuum when new. However, repeated collapsing of the hose will create a "soft spot" that reduces vacuum capabilities, even though it rebounds to it's original shape.

COLORS: Red
APPROVALS: FDA, USDA, 3-A
TUBE: White FDA butyl or synthetic polymer
REINFORCEMENT: Multiple fabric spirals with monofilament helix
TEMP. RANGE: -40° to 225°F
COVER: Red EDPM

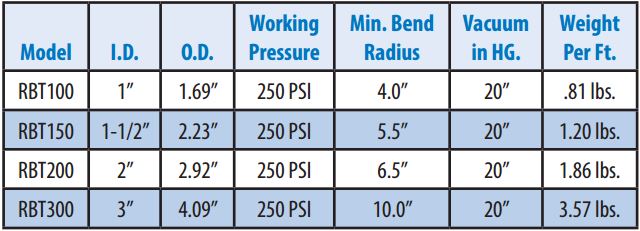

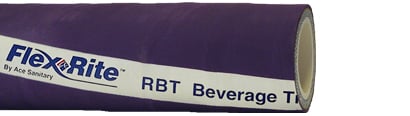

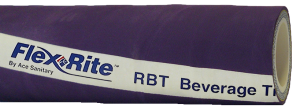

RBT Beverage Transfer



This heavy duty, high pressure discharge hose with it's limited suction capability is ideally suited for transferring liquid products in breweries and wineries. The bounce back design resists damage from kinking or flattening in high traffic areas.

COLORS: Purple
TUBE: White FDA, 3-A*, Chlorobutyl
REINFORCEMENT: Spiral-plied synthetic fabric 4 plies 1.5" – 6 plies 2" & over
TEMP. RANGE: -40 to 225° F
COVER: Purple EPDM w/white stripe

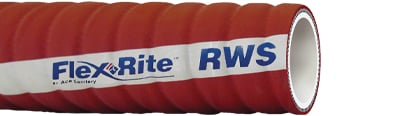

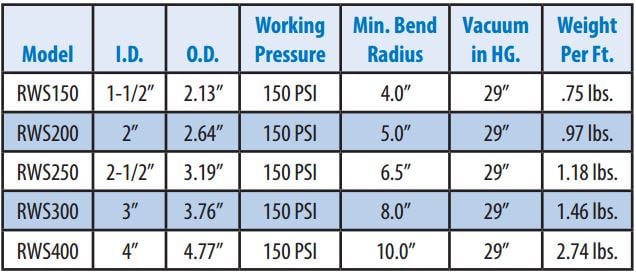

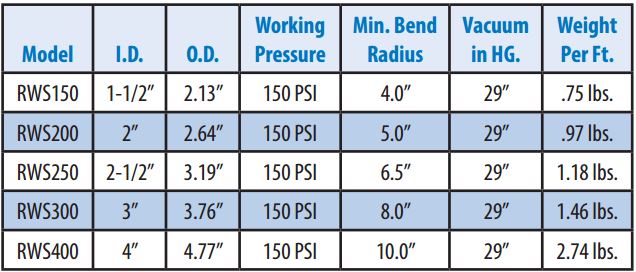

RWS Wine & Spirits



Designed to give you extra flexibility and wear resistance. The RWS is a lightweight suction and discharge hose with an exterior polymer blend cover combined with wide smooth corrugations to ensure low friction and ease of movement. The smooth inner tube delivers a taste and odor free flow. Meets 3-A standards, USDA requirements, and is FDA compliant.

COLORS: Red
TUBE: White, FDA, 3-A*, Chlorobutyl
REINFORCEMENT: High strength synthetic cord with steel wire helix
TEMP. RANGE: -25 to 250° F
COVER: Red Thermoplastic w/white stripe

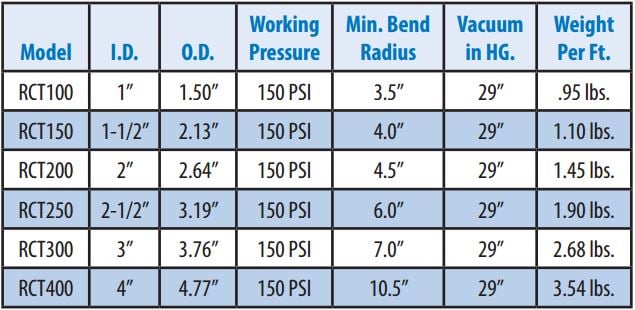

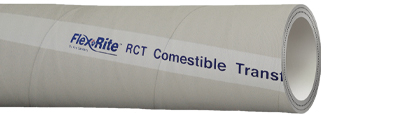

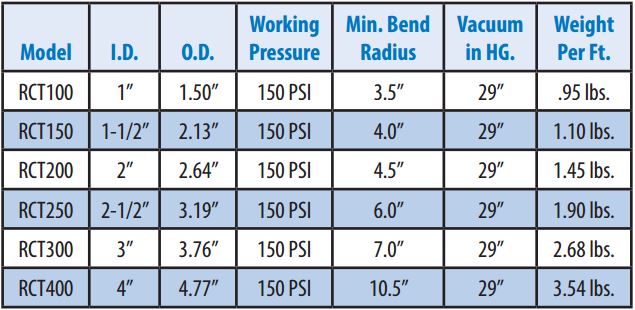

RCT Comestible Transfer



An excellent choice for edible oils and personal care products as well as most dairy applications. Rated for full transfer use up to 150 PSI, this nitrile hose is engineered to handle high temperatures and maintain product color, taste and aroma. A dual wire helix makes the RCT extremely flexible and easy to handle. Meets 3-A* standards, USDA requirements and is FDA compliant.

COLORS: White
TUBE: White, FDA, 3-A*, Nitrile/PVC Blend
REINFORCEMENT: Spiral-plied synthetic fabric with dual wire helix
TEMP. RANGE: -25 to 250° F
COVER: White Nitrile w/white stripe

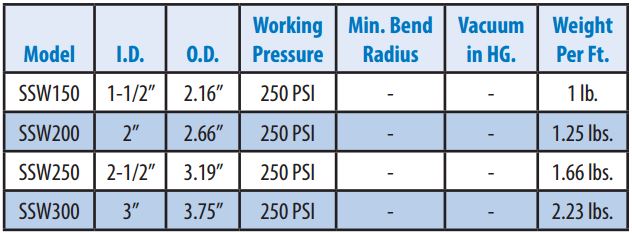

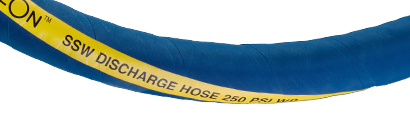

SSW Sentry® Softwall Discharge Hose



When you need ultra lightweight and ease of handling in a straight discharge application, this is the hose for you. Ideal for overhead CIP wash units. The supersmooth seamless tube will not impart taste or odor and handles most CIP solutions with ease. Striking blue cover maintains a clean appearance and resists abrasion.

COLORS: Blue
APPROVALS: FDA, USDA, 3-A, CFIA
TUBE: Seamless white FDA butyl rubber manufactured on chrome polished mandrels
REINFORCEMENT: 2 fabric spirals
TEMP. RANGE: -40° to 225°F
COVER: Blue EPDM
LENGTHS: 1 foot to 100 feet

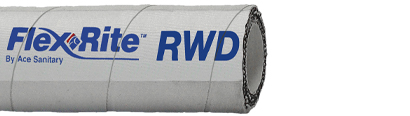

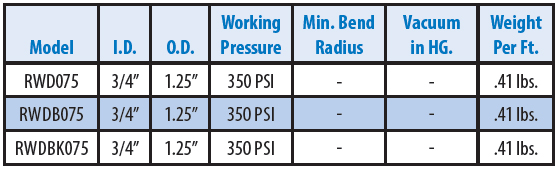

RWD Premium Washdown



Designed with a food grade inner liner for cleanup duties in dairies, creameries, breweries, food, beverage, meat and poultry processing plants. This premium quality hose is capable of handling hot water up to 300° F. A chemically resistant hose with a wrapped cover construction designed to provide excellent resistance to cuts and abrasion while providing handling stability.

COLORS: White, Blue (RWDB), Black (RWDBK)
TEMP. RANGE: -40 to 300° F
TUBE: White FDA, 3-A*, EPDM
COVER: White EPDM, Wrapped Finish
REINFORCEMENT: Spiral-plied synthetic fabric 4 plies

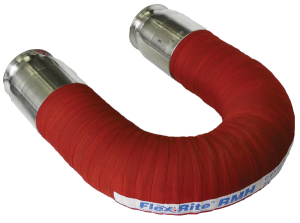

Molded Hoses-Sealrite™ Permanent Crimp

TUBE: Chlorobutyl, Nitrile, EPDM, Viton, Silicone EPDM: Red, Blue, Green, Gray, Black, Purple PSI RATING: 50, 100, 150, 200, 250
REINFORCEMENT: Determined by PSI selection SIZE RANGE:
0.75" – 6.0"
FITTINGS: Seal-Rite Radial Crimp or Vulcanized
Having problems with leaky flow panels because things have shifted or no longer line up properly? We have the solution.
These unique custom molded hoses are manufactured per application. Replace the stainless steel u-bends with our molded rubber hoses assemblies. The rubber is custom molded to hold it's shape but is still flexible enough to compensate for mis-alignment and movement.
Available in a variety of colors to compliment your color-code program with various inner tube elastomers choices to meet product and chemical applications. Sight glasses and proximity rods can also be incorporated into the assembly. Call our product specialist to discuss your applications.



View the full ‘Sanitary Hose Assembly Products’ PDF here!


Build Your Custom Assembly in Just 7 Easy Steps

1) Select code for specific hose
Rubber Hoses
PVC Hoses
Silicone Hoses
Fluoropolymer Hoses
2) Specify hose ID
3) Coupler Style (SL = radial crimp)
4 & 5) Specify size and connection of each end fitting
6) Hose sleeve material (S = stainless steel)
7) Specify overall assembly length in inches
8) Call Customer Service at 800-826-8302
