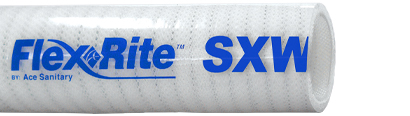

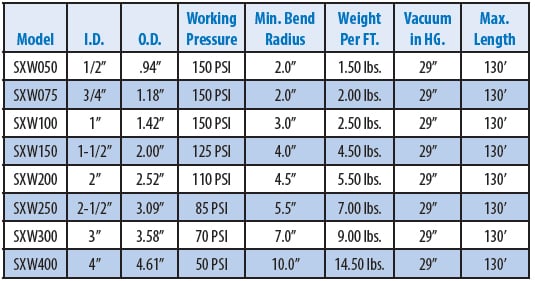

SXW X-Tremely Flexible, Wire Reinforced


SXW with low force-to-bend characteristics is an X-tremely flexible suction and delivery hose. Our phthalates free tubes are ideal for pharmaceutical, cosmetic, and food products transfer. Meets 3A*, USDA, FDA and USP Class VI standards. This High Purity Silicone hose is manufactured to the longest length in the industry (130 feet). Striking a balance between flexibility and strength, SXW is reinforced with 316L stainless steel wire.
TUBE: FDA, 3-A*, USP Class VI silicone – Platinum cured
REINFORCEMENT: Four ply, polyester fabric with 316L stainless steel wire helix
TEMP. RANGE: -100 to 395° F
COVER: White translucent (colors available)

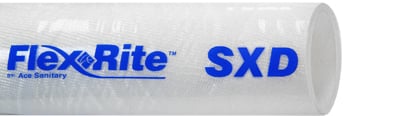

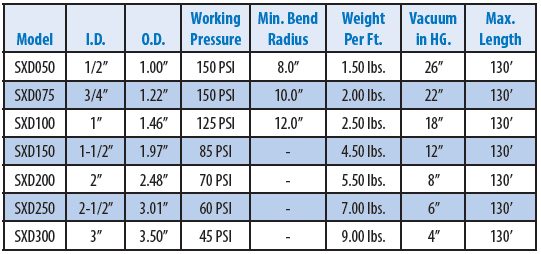

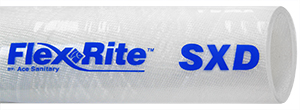

SXD Fabric Reinforced Discharge


A 4-ply, fabric reinforced hose designed for higher pressure applications. The inner diameter is a continuous extruded bore to ensure maximum smoothness and purity. Available in standard polyester. Meets 3A*, USDA, FDA and USP Class VI standards.
TUBE: FDA, 3-A, USP Class VI silicone – Platinum cured
REINFORCEMENT: Four ply, polyester fabric
TEMP. RANGE: -100 to 395° F
COVER: White translucent (colors available)

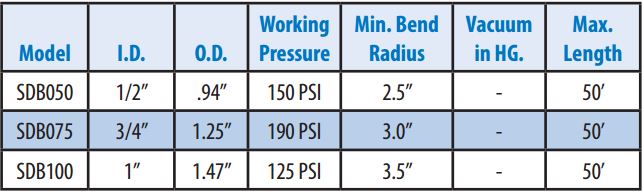

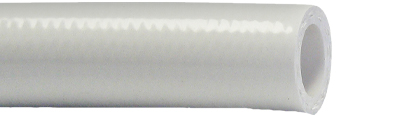

SDB Double Braided Discharge



This high-pressure, silicone, double braided, non-metallic hose can be autoclaved, irradiated or sterilized by ethylene oxide gas. Designed to resist weathering and temperature extremes. Meets 3A*, USDA, FDA and USP Class VI standards.

TUBE: FDA, 3-A, USP Class VI silicone – Platinum cured (clear)
REINFORCEMENT: Double ply, polyester braid
TEMP. RANGE: -100 to 395° F
COVER: Solid white

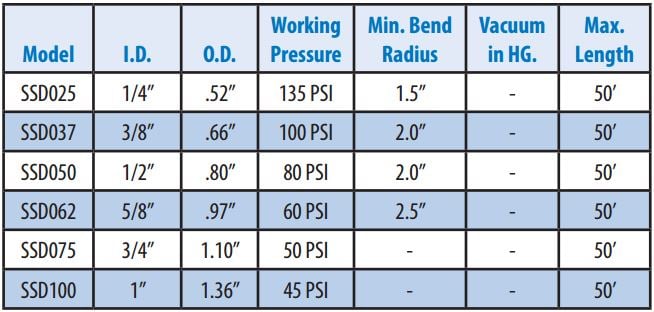

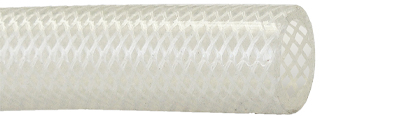

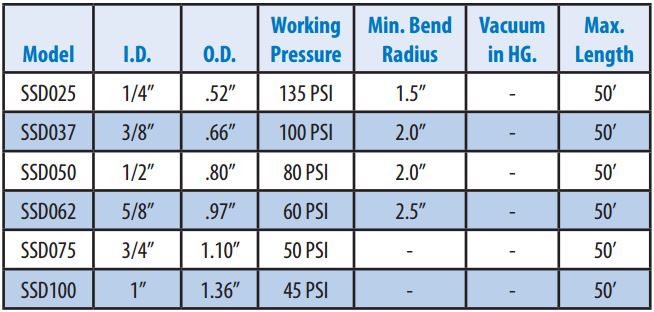

SSD Single Braid Discharge



A braid reinforced silicone hose, processed with pharmaceutical grade elastomer, designed for mid-range pressures. Manufactured using standard polyester or Nomex braid. Resist weathering & temperature extremes. Meets 3A*, USDA, FDA and USP Class VI standards.

TUBE: FDA, 3-A, USP Class VI silicone – Platinum cured
REINFORCEMENT: Single ply, polyester braid
TEMP. RANGE: -100 to 395° F
COVER: White translucent



View the full ‘Sanitary Hose Assembly Products’ PDF here!


Build Your Custom Assembly in Just 7 Easy Steps

1) Select code for specific hose
Rubber Hoses
PVC Hoses
Silicone Hoses
Fluoropolymer Hoses
2) Specify hose ID
3) Coupler Style (SL = radial crimp)
4 & 5) Specify size and connection of each end fitting
6) Hose sleeve material (S = stainless steel)
7) Specify overall assembly length in inches
8) Call Customer Service at 800-826-8302
