Discover Pneumatic Conveyance For Material Transport

Pneumatic Conveyance is a system used in industries to move materials using vacuum power, which creates a closed system that prevents product contamination. The system generates a vacuum that moves materials through an air flow, and offers benefits such as ease of installation, low maintenance, and improved security of the working environment. Pneumatic conveyors are used in various industries and can improve productivity and environmental health.

What Is Pneumatic Conveyance?

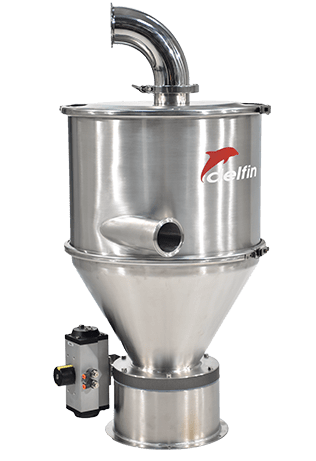

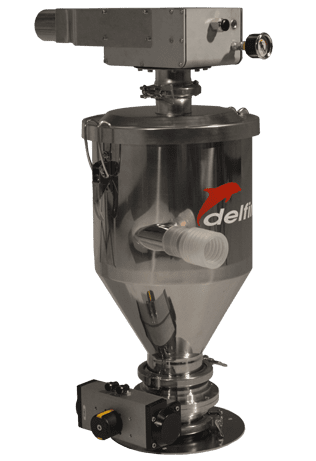

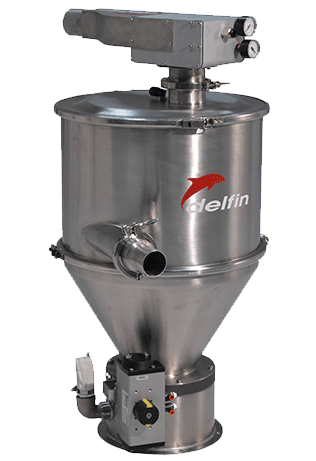

A pneumatic conveyor is a system preferred for moving dust, grain and solid material from one point to another, exclusively by means of vacuum power. The system is entirely closed, preventing any risk of contamination due to product dispersion during transport.

Multihead Weigher Load

Dosing Machine Load

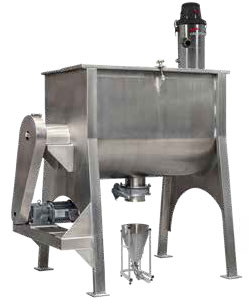

Mixer Load & Unload

What Are The Advantages Of Pneumatic Conveyance?

Low Initial

Easy Installation
& Use

Low-Wear No Maintenance Required

Encumbrance Free Departments

Improves Environmental Health

Use In Potentially
Explosive Atmospheres

Improved Security Of
Working Environment

Easy To Sanitize

No Alteration Or Contamination Of Product

How Does Pneumatic Conveyance Work?

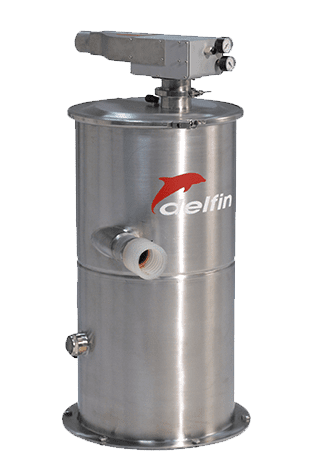

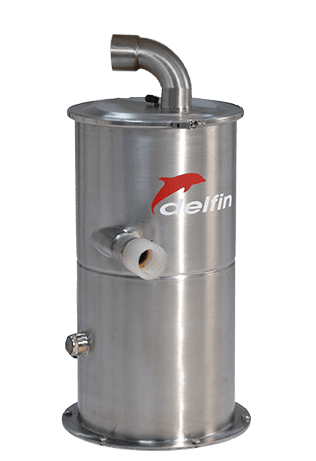

The suction unit generates a vacuum inside the system, the material moves consequently thanks to the air flow. The system allows the automatic transfer of the product by simply connecting it with one or more piece of processing, production or packaging equipment. Air flow can transport material in dense phase (Venturi unit or lobe pump), avoiding the risk of de-mixing or mechanical breakage, or in diluted phase (side channel blower).

What Are The Types Of Pneumatic Conveyance?

Pneumatic conveying systems come in two primary types: dilute phase and dense phase.

Dilute phase systems are designed for high-speed transport of material with low depressions, utilizing a higher percentage of air and a lower concentration of material. While this method allows for faster transportation, it may not be suitable for maintaining material integrity or preventing demixing.

On the other hand, dense phase conveying employs a higher concentration of material and lower air percentage, resulting in slower but more compact product movement.

What Are Dilute Phase Pneumatic Conveyors?

Dilute phase pneumatic conveying involves transporting products in pipes with a lower concentration of the material and a higher percentage of air compared to dense phase conveying. This method allows for faster transportation with relatively low depressions.

However, since the product tends to float inside the pipes, it may not be suitable for preserving the material's integrity or preventing de-mixing.

What Are Dense Phase Pneumatic Conveyors?

Dense phase pneumatic conveying is a method of transporting products through pipelines using a high concentration of product and lower percentage of air, compared to diluted phase. This results in slower and more compact movement of the product, creating real product cores in high-depression areas.

This configuration is ideal for preserving the product's integrity and preventing de-mixing. If you're looking for a method to transport your product in a slow and compact way without compromising its quality, consider dense phase pneumatic conveying.

How Do You Connect Pick-Up Points?

Pick-Up Conveyance

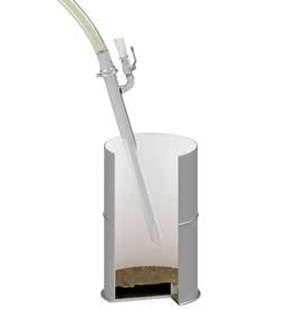

Nozzle Pick-Up

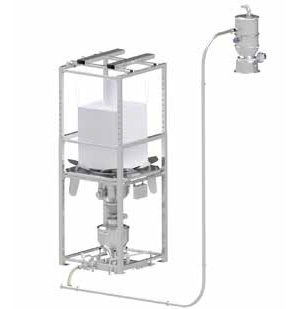

Automatic Pick-Up
After Dosing

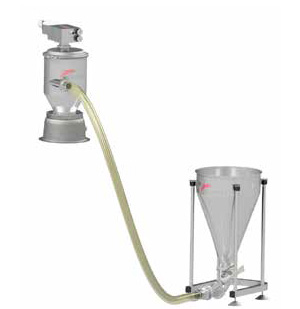

Pick-Up From Manually
Filled Hopper

Discharge & Filling

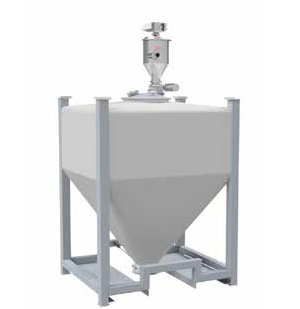

Load or Discharge of Containers,
Bins, and Silos

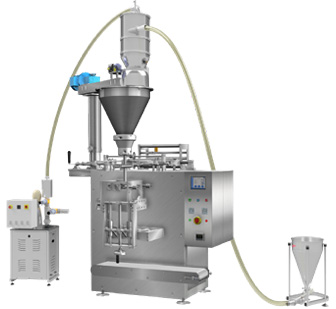

Automatic Machine Load

dicers, roasters, blending machines, vibrating sieves, packaging lines

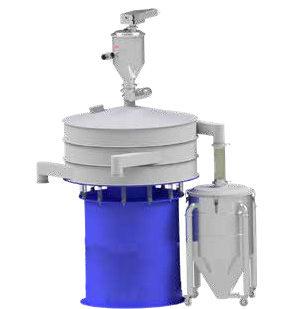

Semi-Automatic Machine Load

dosers, vibrating or auger feeders, envelope machines

What Applications Can Pneumatic Conveyance Be Used On?

Pneumatic conveyors can be used in several industrial fields to move dust, grain and solid material. They can improve productivity and efficiency by up to 30%.
