Compressed air contamination can come from a variety of sources. From fine dust particles, to hydro-carbons to oil aerosols, these seemingly harmless intruders can wreak havoc on your process equipment and negatively affect your food safety and quality. According to the Safe Quality Foods (SQF) Institute, using proper filtration practices is the most effective way of reducing your food safety risk. Using Donaldson's three filtration combinations laid out below, you can ensure that your compressed air is as safe as possible.

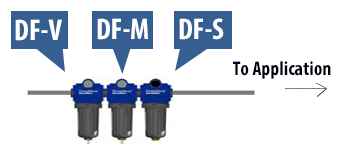

Option 1: All Aluminum Housings—Use when Steam-in-Place Sterilization is Not Required

  • DF-V Particulate Filter Element (99.9% efficiency at 5 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.
  • DF-M Coalescing Filter Element (99.9999% efficiency at 0.01 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.
    • Lowest pressure drop coalescing element on the market.
  • DF-S SQF Final Filter Element (99.99998% efficiency at 0.01 µm)
    • Replaced every three months.
Part Description Capacity (SCFM) Connection (FNPT) Elements Dimensions (in.) Part Number
Element Size Stage 1 Stage 2 Stage 3 Height Width Depth
DF 0035 Housing Combination 20 1/4″ 0035 V-Coalescing M-Coalescing S-SQF Final Element 9.9 9.3 3.6 1C488580-63
DF 0120 Housing Combination 70 1/2″ 0120 V-Coalescing M-Coalescing S-SQF Final Element 13.4 11.7 5.8 1C488581-63
DF 0210 Housing Combination 123 3/4″ 0210 V-Coalescing M-Coalescing S-SQF Final Element 15.9 15 7.9 1C488582-63
DF 0320 Housing Combination 188 1″ 0320 V-Coalescing M-Coalescing S-SQF Final Element 17.4 15.9 7.9 1C488583-63

DF Housing and Element Selection Table

Part Description Part Number for Combination Housing DF-V Housing Superplus DF-V Housing (Standard) DF-V Element DF-M Housing DF-M Element DF-S
Housing
DF-S Element
DF 0035 Housing Combination 1C488580-63 1C484100-63 1C484060-63 1C486003 Same as DF-V 1C486101 1C484062-63 1C486100
DF 0120 Housing Combination 1C488581-63 1C484340-63 1C484300-63 1C486023 Same as DF-V 1C486121 1C484302-63 1C486120
DF 0210 Housing Combination 1C488582-63 1C484460-63 1C484420-63 1C486033 Same as DF-V 1C486131 1C484422-63 1C486130
DF 0320 Housing Combination 1C488583-63 1C484580-63 1C484540-63 1C486043 Same as DF-V 1C486141 1C484542-63 1C486140
  • Not suitable for washdown or SIP.
  • Works for standard SQF air.
  • Superplus has digital reading for differential pressure, with zero loss condensate drain (no dip in air pressure with condensate discharge).

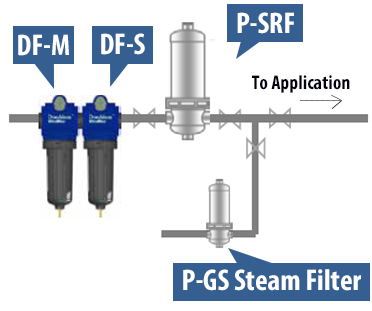

Option 2: Hybrid of Aluminum and Stainless Steel Housings—Use when Steam-in-Place Sterilization is Required

  • DF-M Particulate Filter Element (99.9999% efficiency at 0.01 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.
    • Lowest pressure drop coalescing element on the market.
  • DF-S Coalescing Filter Element (99.99998% efficiency at 0.01 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.
    • Lowest pressure drop coalescing element on the market.
  • P-SRF SQF Final Filter Element (99.9999998% efficiency at 0.02 µm)
    • Replaced every three months or after 100 Steam Sterilization Cycles.

*View the PG-EG Housing and Element Selection table below to properly size and select final filters.
*P-EG (NPT or Flange) housings can be used when sanitary applications are not required. For sanitary applications (product and process), use PG-EG housings.

Click here to view our selection
of P-GS steam filters.

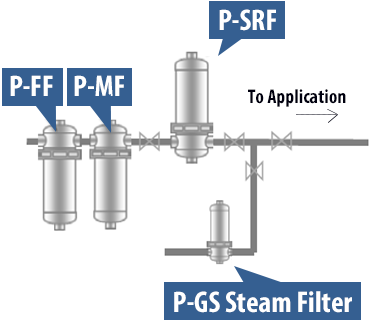

Option 3: All Stainless Steel Housings—Use when Steam-in-Place Sterilization or Stainless Steel Filter Housings are Required.

  • P-FF Particulate Filter Element (99.9999% efficiency at 0.01 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.

*View the P-EG Housing and Element Selection table below to properly size and select pre-filters.

  • P-MF Coalescing Filter Element (99.99998% efficiency at 0.01 µm)
    • Replaced annually or when differential pressure is indicated on the differential pressure gauge.

*View the P-EG Housing and Element Selection Table below to properly size and select pre-filters.

  • P-SRF SQF Final Filter Element (99.9999998% efficiency at 0.02 µm)
    • Replaced for every three months or after 100 Steam Sterilization Cycles.

*View the PG-EG Housing and Element Selection table below to properly size and select final filters.
*P-EG (NPT or Flange) housings can be used when sanitary applications are not required. For sanitary applications (product and process), use PG-EG housings.

Click here to view our selection
of P-GS steam filters.


Below you will find the options for Donaldson’s Stainless Steel Steam, Compressed Air, and Gas Filter Housings.

P-EG Housing and Element Selection Table (Pre-Filter)

Model #1
Pre-Filter
Capacity (SCFM)
@ 45 psi
Capacity (SCFM)
@ 100 psi
Capacity (SCFM)
@ 150 psi
Connection Size
(FNPT)
Element Connection Size & Qty P-EG Housing Part Number Air Pre-Filter 1 P-FF Air Pre-Filter 2 P-MF
P-EG 0006 18 36 50.4 1/4″ UF, 03/10, Qty 1 AG1252538 1C221216 1C221516
P-EG 0009 27 54 75.6 3/8″ UF, 04/10, Qty 1 AG1252539 1C221220 1C221520
P-EG 0012 36 72 100.8 1/2″ UF, 04/20, Qty 1 AG1252540 1C221224 1C221524
P-EG 0018 54 108 151.2 3/4″ UF, 05/20, Qty 1 AG1252541 1C221232 1C221532
P-EG 0027 81 162 226.8 1″ UF, 05/25, Qty 1 AG1252542 1C221240 1C221540
P-EG 0036 108 216 302.4 1-1/4″ UF, 07/25, Qty 1 AG1252543 1C221248 1C221548
P-EG 0048 144 288 403.2 1-1/2″ UF, 07/30, Qty 1 AG1252544 1C221256 1C221556
P-EG 0072 240 480 672 2″ UF, 10/30, Qty 1 AG1252545 1C221264 1C221564
P-EG 0108 360 720 1,008 2″ UF, 15/30, Qty 1 AG1252546 1C221272 1C221572
P-EG 0144 480 960 1,344 2-1/2″ UF, 20/30, Qty 1 AG1252547 1C221280 1C221580
P-EG 0192 576 1,152 1,612.8 3″ UF, 30/30, Qty 1 AG1252548 1C221288 1C221588
P-EG 0288 980 1,960 2,744 3″ UF, 30/50, Qty 1 AG1252549 1C221296 1C221596
P-EG 0288 980 1,960 2,744 3″ Flange UF, 30/50, Qty 1 AG1252557 1C221296 1C221596
P-EG 0576 1,920 3,840 5,376 4″ Flange UF, 30/30, Qty 3 AG1081401 1C221288 1C221588
P-EG 1152 3,840 7,680 10,752 6″ Flange UF, 30/30, Qty 6 AG1081601 1C221288 1C221588

PG-EG Housing and Element Selection Table (Final Filter)

Model #2
Final-Filter
Capacity (SCFM)
@ 45 psi
Capacity (SCFM)
@ 100 psi
Capacity (SCFM)
@ 150 psi
Connection
Size (TC)
Element Connection
Size & Qty
PG-EG Housing
Part Number
Sterile Air Element
P-SRF X
PG-EG 0006 18 36 50.4 1/2″ UF, 03/10, Qty 1 AG1252657 1C224516
PG-EG 0018 54 108 151.2 3/4″ UF, 05/20, Qty 1 AG1252658 1C224532
PG-EG 0032 108 216 302.4 1″ Code 7, 05/30, Qty 1 AG1252659 1C224554
PG-EG 0072 216 432 604.8 2″ Code 7, 10/30, Qty 1 AG1252660 1C224574
PG-EG 0144 432 864 1,209.6 2-1/2″ Code 7, 20/30, Qty 1 AG1252661 1C224582
PG-EG 0192 648 1,296 1,814.4 3″ Code 7, 30/30, Qty 1 AG1252662 1C224590
PG-EG 0576 1,920 3,840 5,376 4″ Flange UF, 30/30, Qty 3 AG1083201 1C224588
PG-EG 1152 3,840 7,680 10,752 6″ Flange UF, 30/30, Qty 6 AG1083401 1C224588
