MadgeTech HiTemp140-2 Data Loggers

$544.74

SKU

2433000

Specifications

More Information
SKU	2433000
Mfr #	900153-00
Sold By	EA
Accuracy	±0.1°C/±0.18°F (20°C-140°C/68°F-284°F); ±0.3°C/±0.54°F (-20°C-19.99°C/-4°F-67.98°F); ±0.4°/±0.72°F (-40°C to -20.01°C/-40°F-4.02°F)
Dimensions (L x W x H)	1.75" x 0.97" diameter (45 mm x 25 mm diameter)
Memory	32,256 Readings
Operating Environment	-40°-140°C (-40°-284°F), 0%RH-100%RH, 0.002 PSIA-100 PSIA
Origin Country	US
Probe Dimensions	2" x 0.188" diameter (51 mm x 4.8 mm diameter)
Reading Rate	1 every second to 1 every 24 hours
Resolution	0.01°C (0.018°F)
Temperature Range	-200°C-260°C / -328°F-500°F (Body of Logger Can't Exceed 140°C)
Type	Data Logger
UNSPSC	41112200

Product Details

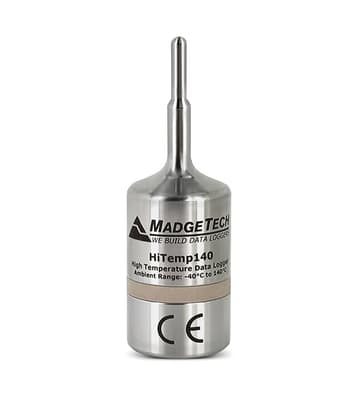

The HiTemp140-2 is a durable and reliable data logger that can be used in high-temperature environments. It comes with a 2" rigid probe, which makes it suitable for use in challenging conditions. This versatile logger can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F). It has a large storage capacity of up to 32,256 time and date-stamped readings. The HiTemp140-2 can be configured for an immediate or delayed start, allowing programming up to 18 months in advance. The data logger is submersible and has an ISO 17025 Accredited Calibration Certificate. It also has a piercing tip.

To use the HiTemp140-2, purchase it with an IFC400 (2433001) or IFC406 (2433009) Interface Cable.
